Single Phase Simplex Pump Control Panel, 120/208/240V, NEMA 4X, UL Listed

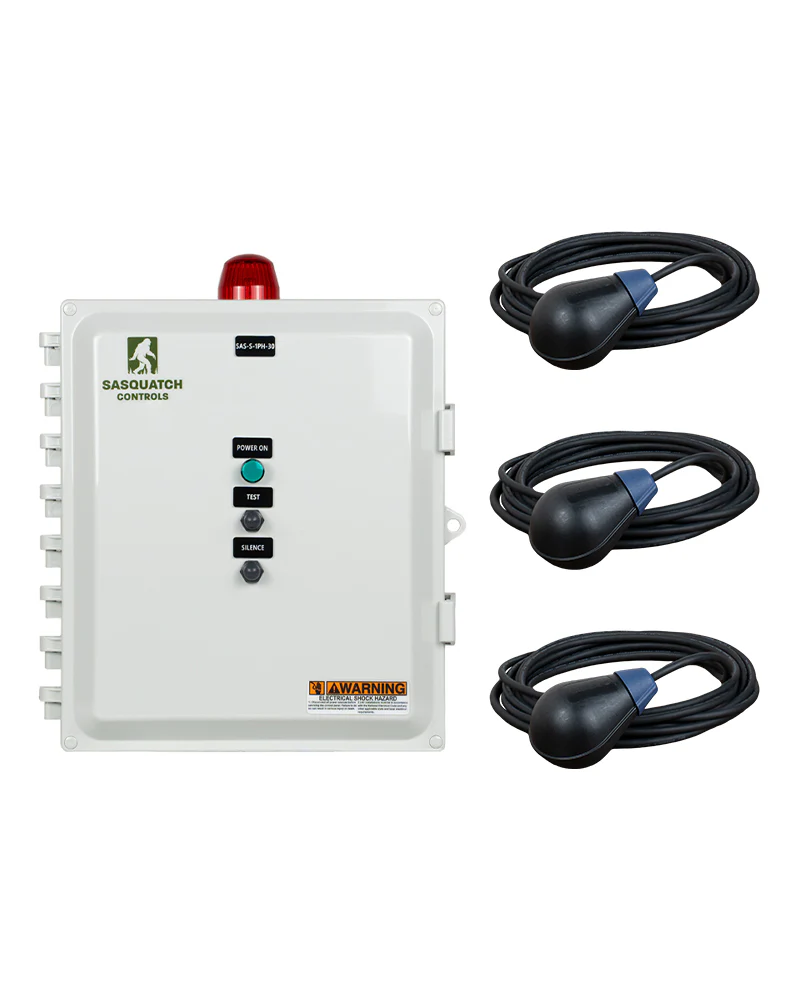

The Sasquatch SAS-S-1PH is a single phase control panel designed for use with one pump, rated for 120/208/240 VAC up to 25.0 FLA. Standard features include: NEMA 4X enclosure, motor and control circuit breaker, pump run light, alarm buzzer, 360-degree red beacon alarm light, and three mechanical floats. This control panel is UL listed and comes standard with a two-year limited warranty.

Features

• NEMA 4X enclosure: 12”x 10”x 6”
• 120/208/240V, single phase, 0.0-25.0 FLA
• Motor circuit breaker
• Motor contactor
• Control circuit breaker
• Pump hand-off-auto toggle switch
• Pump run light
• Alarm test and silence button
• 360-degree red beacon alarm light
• Alarm buzzer sounds 85 decibels at 10’
• Includes three normally open mechanical floats with 20’ leads
• UL listed with two-year limited warranty
