Single Phase Duplex Pump Control Panel, 120/208/240V, NEMA 4X, UL Listed

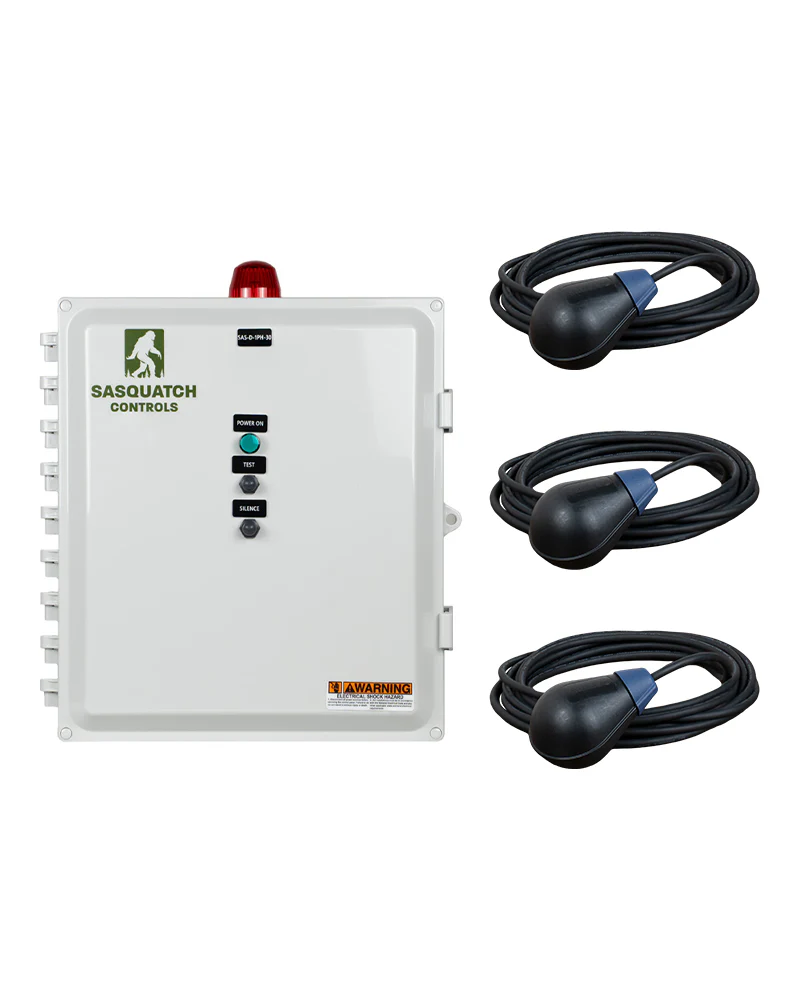

The Sasquatch SAS-D-1PH is a single phase control panel designed for use with two pumps, rated for 120/208/240 VAC up to 25.0 FLA. Standard features include: NEMA 4X enclosure, motor and control circuit breaker(s), pump run light(s), alarm buzzer, 360-degree red alarm beacon light, and three mechanical floats. This control panel is UL listed and comes standard with a two-year limited warranty.

Features

• NEMA 4X enclosure: 14”x 12”x 6”
• 120/208/240V, single phase, 0.0-25.0 FLA
• Automatic alternating relay for duplex operation
• Motor circuit breakers
• Motor contactors
• Control circuit breaker
• Pump hand-off-auto toggle switch for each pump

• Pump run lights
• Alarm test and silence buttons
• 360-degree red beacon alarm light
• Alarm buzzer 85 decibels at 10’
• Includes three normally open mechanical floats with 20’ leads
• UL listed with two-year warranty
